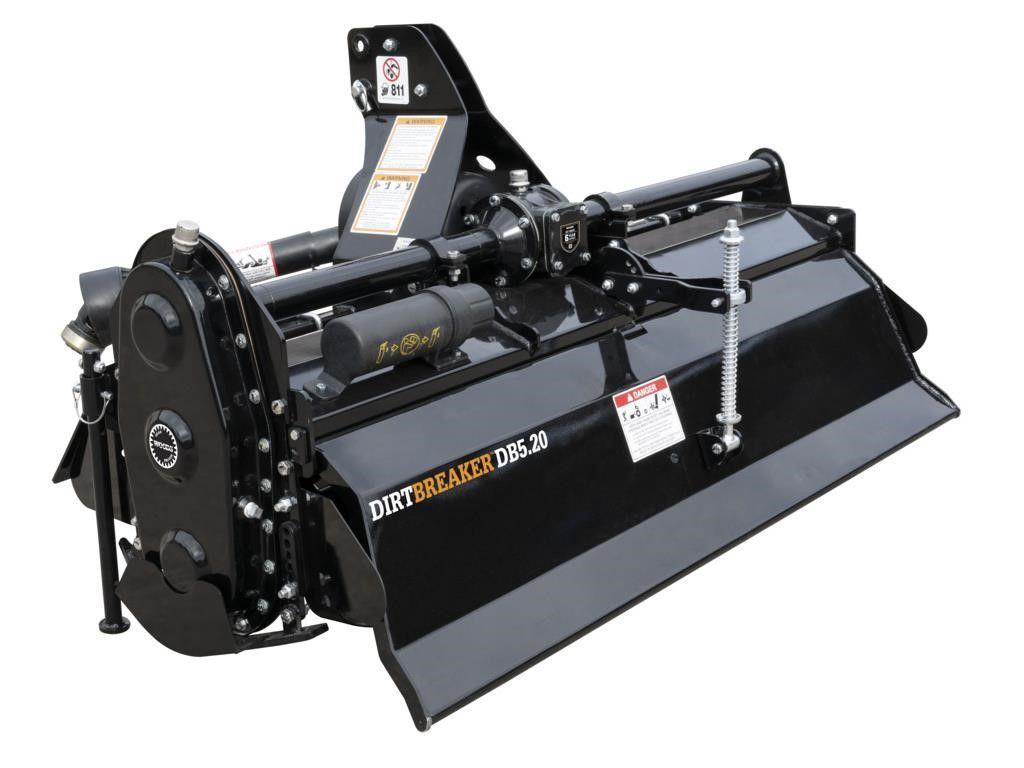

2026 WOODS DB5.20

WOODS DB5.20 — DIRTBREAKER™ TILLER BE READY TO GROW Ideal for compact tractors, Woods® line of rotary tillers deliver a finely finished seed bed in fewer passes. Woods tillers are offered in forward and reverse rotation. Every model features a durable, gear-driven side drive to tackle even tough soil conditions and is engineered Quick-Hitch Ready for easy tractor connection. The 6-year gearbox warranty includes parts, labor, and seals for the full warranty period. THE NEW DIRTBREAKER™ TILLER Our durable, gear-driven rotary tiller delivers a finely tilled seedbed in just one pass for fast and easy planting prep. TACKLE TOUGH CONDITIONS The gear-driven side drive is more durable and reliable than chain-driven tillers. Built for long-term durability and requires little maintenance. OPTIMIZE YOUR SEED BED Delivers a finely tilled seedbed in just one pass. EASY CONNECTION Engineered Quick-Hitch Ready for easy tractor connection. UNMATCHED GEARBOX PROTECTION 6-year warranty including parts, labor, and seals. ADDITIONAL FEATURES 1. Engineered Quick-Hitch Ready for easy tractor connection. Bushings included. 2. Robust Gear-Driven Side Drive provides years of reliable service and requires far less maintenance than chain-driven units. 3. Tapered Tailgate removes furrow for a finished seedbed. 4. Adjustable skid shoes to provide easy depth control. 5. Parking stand included for easy connection. WARNING! Some images may show safety shields removed to provide a better view. Equipment should never be operated with any safety shield removed. Some machines may be shown with optional equipment. Always operate machines in accordance with supplied operator’s manuals. ©2024 Woods Equipment Company. All rights reserved. WOODS and Woods logo are trademarks of Woods Equipment Company. All other trademarks, trade names, or service marks not owned by Woods Equipment Company are the property of their respective companies or mark holders. Specifications and data shown are subject to change with or without prior notice.

Technical Data

Product Tier

Standard

Tractor PTO HP

20-30

Tractor PTO Speed (rpm)

540

Rotor Speed (rpm)

244

Tine Rotation Direction

Forward

Maximum Tilling Depth (in)

6.9

Drive Type

Gearbox

PTO Driveline Protection

Slip clutch

Gearbox Housing

Heavy-duty cast iron

Gearbox Warranty

6 years

Working Width (in)

62.1

Overall Width (in)

67.2

Weight (lbs)

640

Type of Blades (shape)

“C”

Number of Blade Flanges

8

Number of Tines

48

Number of Tines/Flange

6

Skid Shoe Depth Adjustments (in)

(6) 0.4 – 2.2

Tractor Hitch

CAT 1

Quick-Hitch Ready

Yes

Parking Stand

Standard
