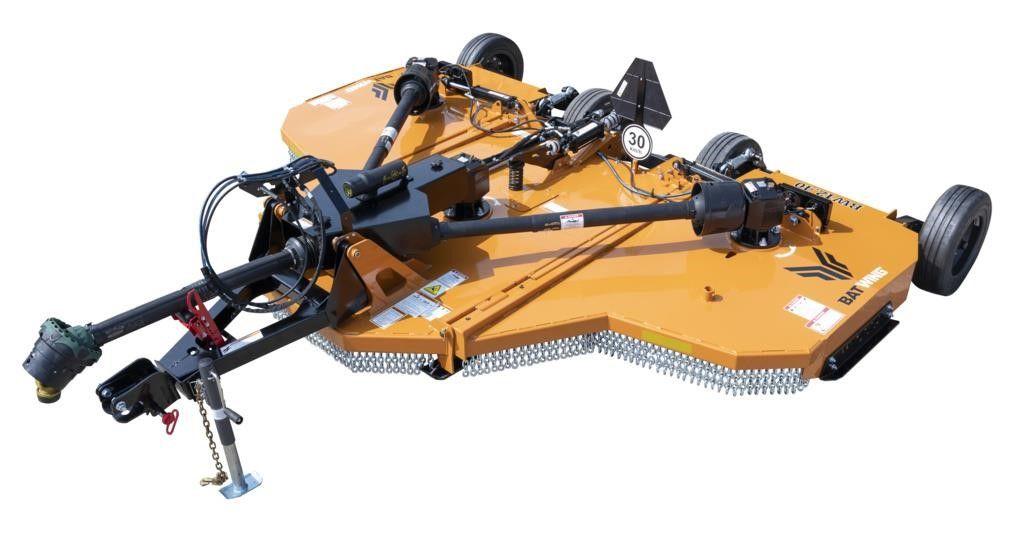

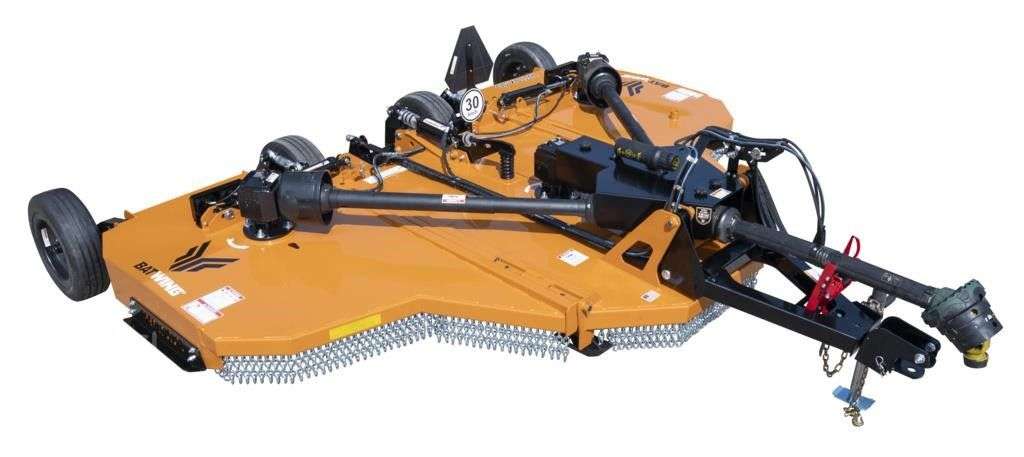

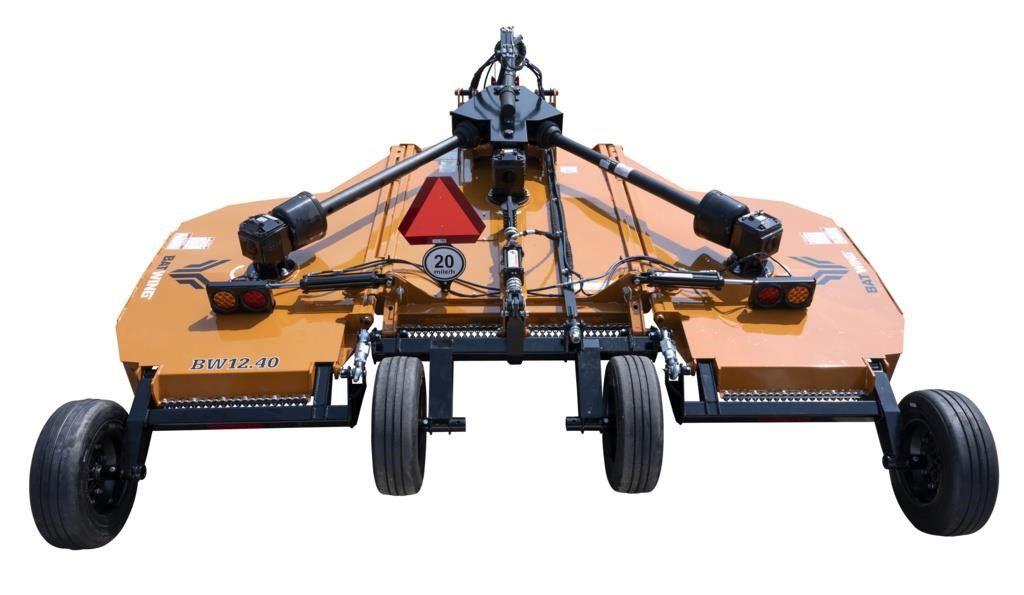

2026 WOODS BW12.40

WOODS – BW12.40 – BATWING CUTTERS Rotary cutter owners and operators rated Woods® Batwing® cutter the #1 flex-wing cutter for cut quality in a blind study of the major brands in the category. The one and only since 1963, Woods® Batwing® cutter delivers unmatched cut quality, includes exclusive features for easy maintenance and tractor connection and is backed a 10-year gearbox warranty which includes parts, labor and seals. #1 IN CUT QUALITY Enabled by deep cutting decks, high-lift blades and our exclusive baffling design. Read Study *Rated #1 in cut quality by rotary cutter owners and operators in a double-blind study of major brands in the category. EASY MAINTENANCE EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required. A large blade access window at the top of the deck let’s you easily access blades for simple maintenance. Features our new shimless and greaseable design. EASY CONNECTION The Woods Exclusive Smartlift™ System holds your 80lb PTO driveline allowing you to easily connect and disconnect from the tractor. UNMATCHED GEARBOX PROTECTION 10-year gearbox warranty including parts, labor, and seals. Woods Exclusive Triple Seal™ Gearbox Protection and Cool-Flow™ Lubrication System to cool the gearbox, prevent leaks, and reduce downtime. ADDITIONAL FEATURES • EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required. A large blade access window at the top of the deck let’s you easily access blades for simple maintenance. Features our new shimless and greaseable design. • The Woods Exclusive Smartlift™ System holds your 80lb PTO driveline allowing you to easily connect and disconnect from the tractor. • Adjustable Hose Holder holds hoses closer to the hydraulic remotes, clear of PTO shaft and tractor tires. Makes it easier to match hose length to the tractor. • Metal Thumbscrew Dipstick quickly and easily check gearbox oil. • Tapered Roller Bearing Design inside the gearbox better absorbs and deflects hard impacts away from gearbox components. • PTO Lock Collar holds PTO collar back for easier tractor connection. • Aligned Grease Points easily find and service grease points. • Skid Shoes are replaceable. Specifications and data shown are subject to change with or without prior notice. Technical Data

Product Tier

Professional

Tractor PTO HP

40-120

Adjustable Cutting Height (in)

2 to 12

Cutting Capacity Diameter (in)

2.5

Cutting Width (ft)

12

Blade Tip Speed (fpm)

15,523 center / 15,459 wing

Blade Size (in)

.5 x 4

Weight / Tongue Weight (lbs)

3,050 / 1,055

Transport Width (in)

101

Hydraulics Wing Flex (degrees)

90 up, 22 down

Side Skirt (in)

11 deep, 7 ga thick

Stump Jumper Type

Oval

Deck Thickness (in)

10 ga

Wheel Type

21 inch laminated, 21 inch Severe-duty ag, 21 inch Severe-duty ag foam-filled, 25.5 inch Severe-duty ag, 25.5 inch Severe-duty ag foam-filled

Suspension

Spring on center section

Driveline Rating

CAT 4 CV main, CAT 4 wing

Gearbox Rating (HP)

160 splitter / 100 center and wing

Output Shaft Size (in)

2

Structure Warranty

2 years

Gearbox Warranty (yrs)

10

Options

Dual-wheels on center deck *Monthly payment stated above assumes a secured commercial use loan transaction available for highly qualified commercial loan applicants. Actual loan payment amount and terms may vary. Consumer financing not available for consumers residing in Nevada. Additional state restrictions may apply. Equal opportunity lender. Click here for more state licenses and disclosures. NMLS ID: 1857954. VERMONT RESIDENTS: THIS IS A LOAN SOLICITATION ONLY. CurrencyFinance IS NOT THE LENDER. INFORMATION RECEIVED WILL BE SHARED WITH ONE OR MORE THIRD PARTIES IN CONNECTION WITH YOUR LOAN INQUIRY. THE LENDER MAY NOT BE SUBJECT TO ALL VERMONT LENDING LAWS. THE LENDER MAY BE SUBJECT TO FEDERAL LENDING LAWS. CALIFORNIA RESIDENTS: Financing provided or arranged by Express Tech-Financing, LLC dba Currency pursuant to California Finance Lender License #60DBO54873 Chat Now
