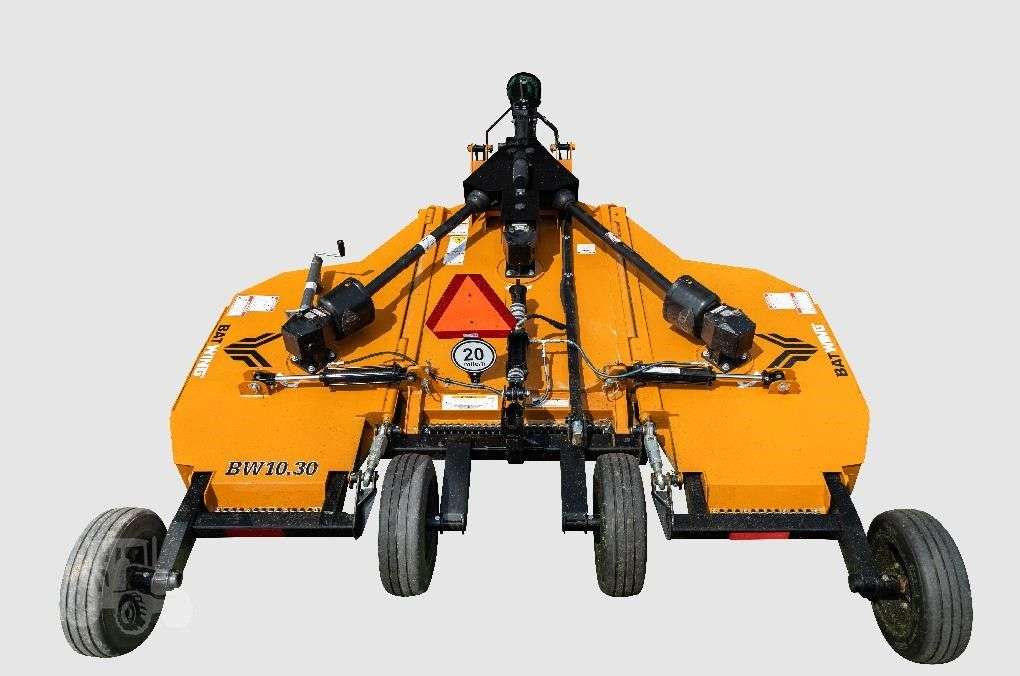

2026 WOODS BW10.30

WOODS – BW10.30 – BATWING CUTTERS Rotary cutter owners and operators rated Woods® Batwing® cutter the #1 flex-wing cutter for cut quality in a blind study of the major brands in the category. The one and only since 1963, Woods® Batwing® cutter delivers unmatched cut quality, includes exclusive features for easy maintenance and tractor connection and is backed a 10-year gearbox warranty which includes parts, labor and seals. #1 IN CUT QUALITY Uses the same cutting technology as our #1-rated BW12.40 and BW15 series Batwing® cutters. Enabled by deep cutting decks, high-lift blades, and our exclusive baffling design. EASY MAINTENANCE EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required. OPTIONAL EASY CONNECTION KIT The Woods Exclusive SmartLift™ System and hydraulic hose holder are available with an optional Easy Connection Kit. The SmartLift™ System holds holds your 80lb PTO driveline allowing you to easily connect and disconnect from the tractor. UNMATCHED GEARBOX PROTECTION 10-year warranty including parts, labor, and seals. Gearbox also features Woods Exclusive Cool-Flow™ Lubrication System and Triple Seal™ Gearbox Protection. ADDITIONAL FEATURES • EZ-Change™ Blade System allows blade change in five steps with a ¾” wrench. No impact gun or torch required. A large blade access window at the top of the deck let’s you easily access blades for simple maintenance. Features our new shimless and greaseable design. • Optional easy connection kit can be ordered to make tractor hook up quick and easy. Kit includes SmartLift™ System and adjustable hydraulic hose holder. • Metal Thumbscrew Dipstick quickly and easily check gearbox oil. • Tapered Roller Bearing Design inside the gearbox better absorbs and deflects hard impacts away from gearbox components. • PTO Lock Collar holds PTO collar back for easier tractor connection. • Aligned Grease Points easily find and service grease points. • Skid Shoes are replaceable. Specifications and data shown are subject to change with or without prior notice.

Technical Data

Product Tier

Standard Plus

Tractor PTO HP

25-60

Adjustable Cutting Height (in)

2 to 12

Cutting Capacity Diameter (in)

1.5

Cutting Width (ft)

10

Blade Tip Speed (fpm)

13,100 center / 15,800 wing

Blade Size (in)

.5 x 4 High Lift

Weight/Tongue Weight (lbs)

2,173 / 745

Transport Width (in)

82

Hydraulics Wing Flex (degrees)

90 up, 22 down

Side Skirt (in)

10 deep, 7 ga thick

Stump Jumper Type

Oval

Deck Thickness (in)

11 ga

Wheel Type

21” laminated, 21” used aircraft, 21” Severe-duty ag, 21” Severe-duty ag foam-filled

Driveline Rating

CAT 4 CV main, CAT 3 wing

Gearbox Rating (hp)

160 splitter / 75 center and wing

Gearbox Warranty (yrs)

10

Output Shaft Size (in)

1.57 dia

Options

Easy Connection Kit with an adjustable hydraulic hose holder and SmartLift™ System. Highway Lighting Kit.

Structure Warranty
