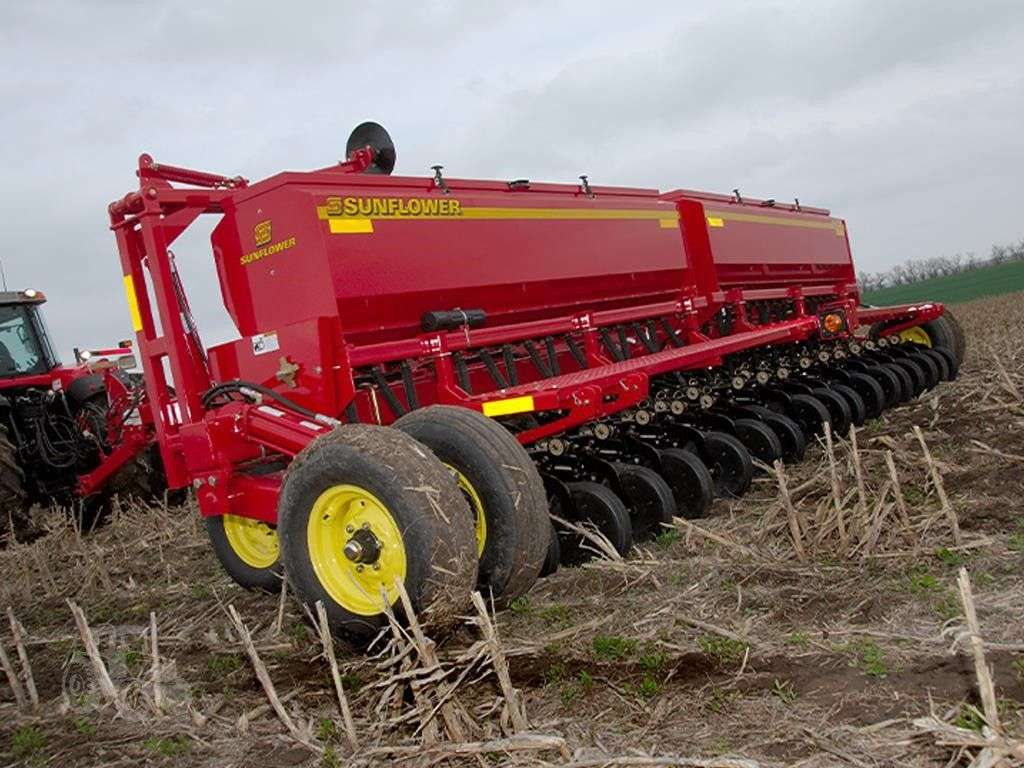

2026 SUNFLOWER 9421-30

SUNFLOWER - 9421-30 — TWO-SECTION FOLDING GRAIN DRILL Sunflower’s 9421 two-section grain drill sports a narrow transport width compared to wide, rigid, mounted designs that are difficult to move between fields. Keeping the operator in mind, Sunflower’s two-section series provides valuable flexibility both during transport and in the field The “in-line” 3-bushel-per-foot grain boxes facilitate seed filling and align the openers for superior control, resulting in uniform seed placement. All Sunflower multi-purpose drills feature a full 8" of front to rear stagger between opener units. The Sunflower 9421 is an excellent alternative to a higher priced split-row planter. FEATURES • Simple fold system, no electrical switches • Two-section design allows center flexibility and a narrow transport width • Low-profile seed boxes feature a seed capacity of 3 bushels per foot with new, wider lids • Tractor draw bar mount design ALL-PURPOSE "HEADS UP" OPENER All-purpose openers feature wide set half-inch parallel links for better depth control and dead-on accuracy in seed placement. Two 400 lbs. retention springs can generate 450+ lbs. at the pinch point of the opener blade. Down pressures can be easily adjusted from no-till to conventional seeding without tools. 15" diameter x 3 1/2-millimeter “Heads Up” opener blades eliminate pairing of rows, premature leading blade wear and side loading of bearings. An eight-inch stagger helps passage of residue through the seeding system when seeding in heavy-residue, no-till situations SEED HOPPERS The all-welded seed hoppers are constructed of heavy 16-gauge steel with 3/16" thick end plates. The bolt-in hopper bottoms allow multiple row spacing using the same hopper. 9421 (3.75 bu) SEED METERS & ADJUSTMENTS The infinitely variable meters are very gentle on seeds and provide a continuous flow of material, unlike fluted meters that drop seed in groups. This design has a better singulation effect than dumping small groups of seed (as in fluted meter operations). Rates are easily changed with a lever adjustment system on each hopper system. A small-seeds (legume) seeding hopper can be added to all models. WALK BOARDS 9000 series drills feature an automatically locking walk board. Lift the walk board to the raised position and the lock will engage, placing the pin in the lock position. The walk board is deep and the ladder folds over the walk board rather than under it. Attached to the ladder mount is a folding handle to assist the operator in mounting the walk board. EXTRA HEAVY FRAMES Heavy-duty 3/8" x 7" x 7" main frames are coupled to a 3/8" x 3" x 5" opener frame to create a sound foundation for all Sunflower grain drills.
