2026 SITREX MX10

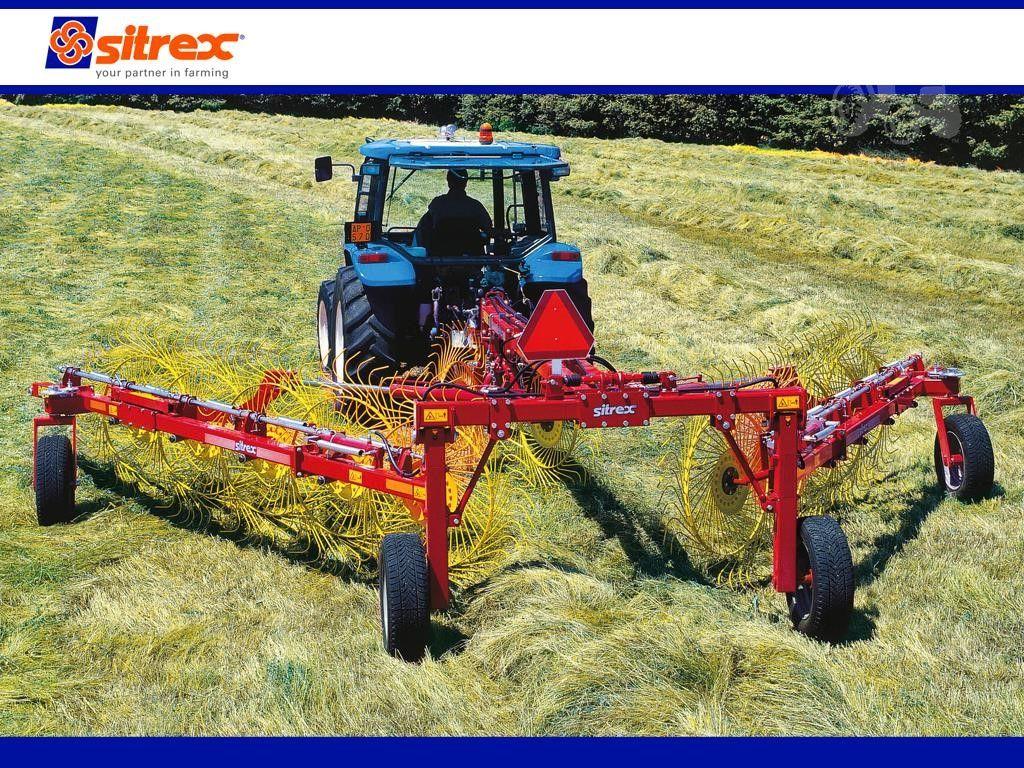

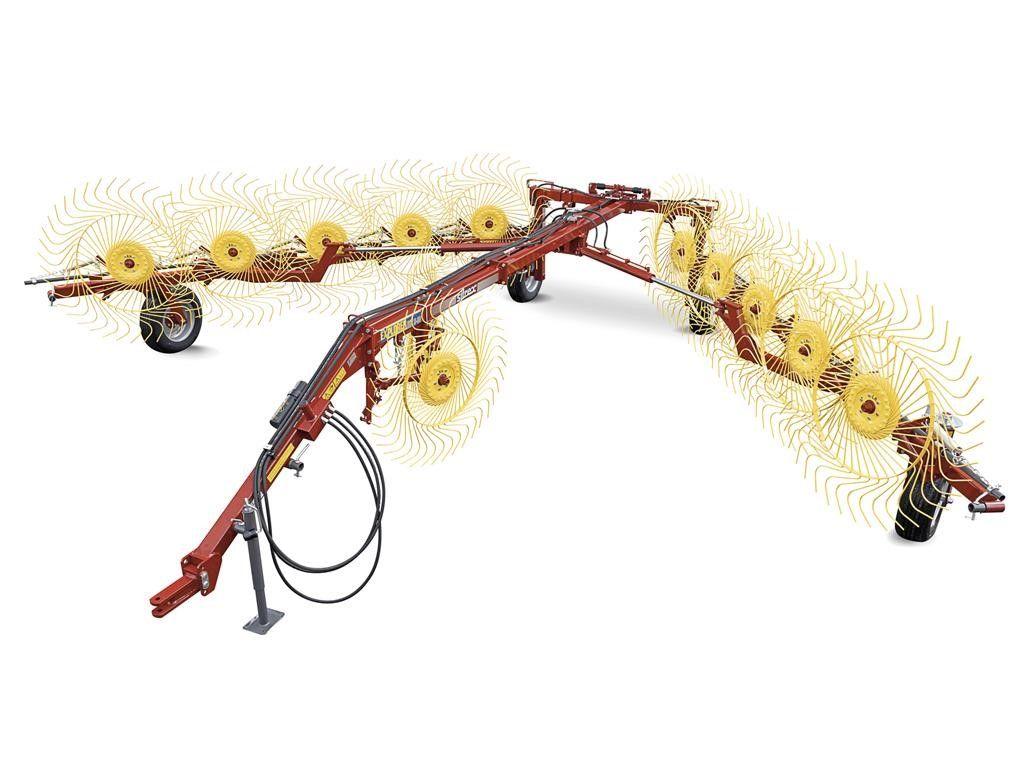

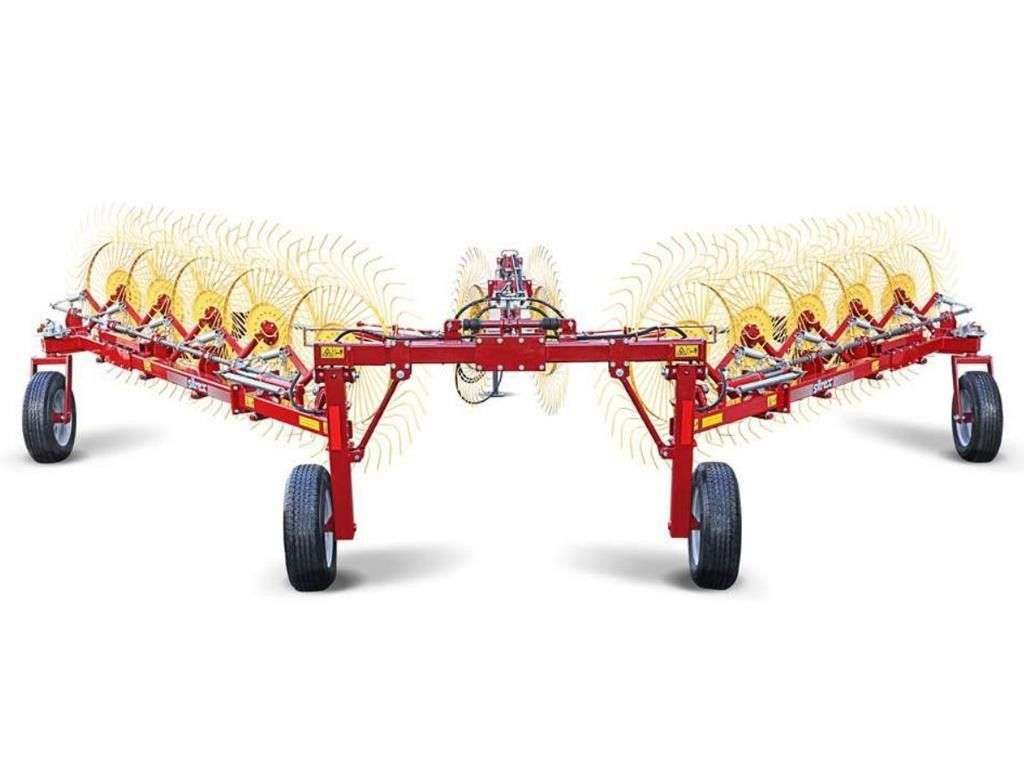

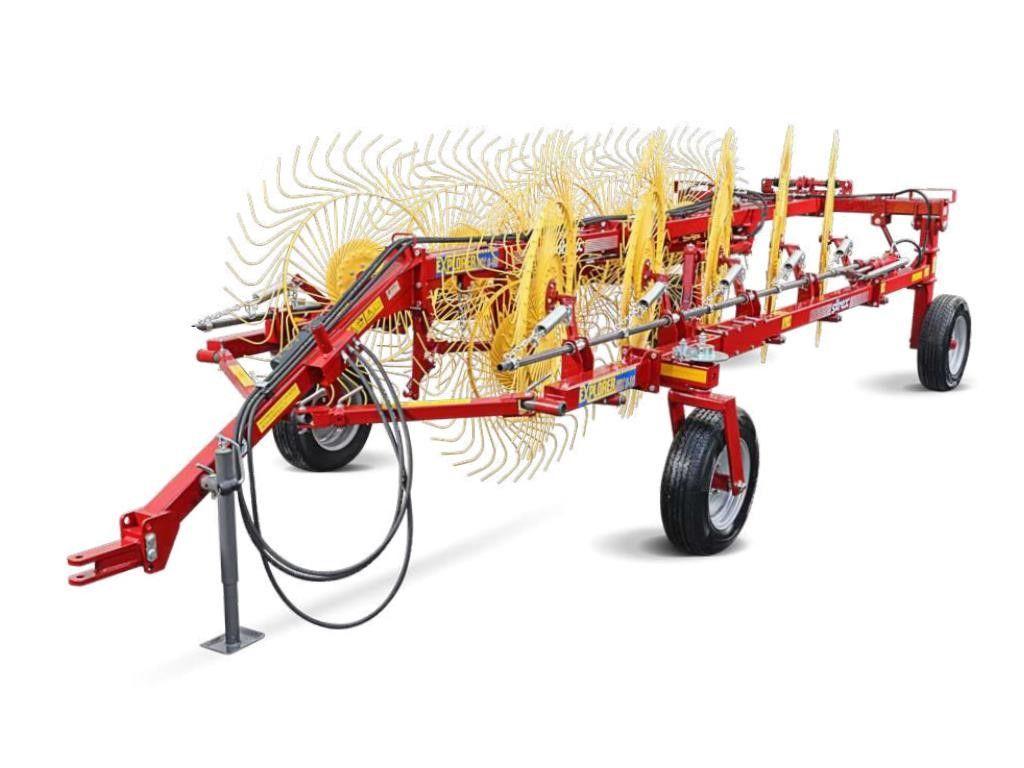

SITREX EXPLORER "V" RAKE — MX10 EXPLORER “V” RAKES The Sitrex EXPLORER Pull – Type V- Rake is a medium size V-Rake. This machine is designed to obtain a maximum working width of 23'3" and windrows widths adjustable from 3" to 5'. The drawbar and the opening system are mounted over the wheels this allows to make a windrow without hindrances with the components of the machine. All rake wheels are spring-load lifted independently and this allows the machine to follow the ground contours. Tines are made of special steel with 7mm. diameter. Tines pick up the hay making fluffy windrows very suitable for baling. A double hydraulic system, tractor driven, controls both the wheels lift and the machine total or partial opening and closing. On the hydraulic cylinder, which controls the opening and closing of the machine, is mounted a locking valve to maintain the required working width. Even in case of pipe breaking the machine remains in the same position which has been set. DISCOVER THE CHARACTERISTICS OF EXPLORER. • Suspension arms with independent finger wheels. • Tubular frame 100×100. • Finger wheel ground pressure adjustment. • Adjustable swath width with screw tie-rod. OPTIONAL ACCESSORY KITS: Double Centre Kicker Wheel Kit — A simple additional central rake wheel can be mounted at any time, either independently or connecting it to the machine's standard hydraulic circuit, without having to make any changes to the basic machine. Specifications and data shown are subject to change with or without prior notice.

TECHNICAL DATA

Number of Finger Wheels

10

Number of Tines for Wheels

40

Working Width

20'5" | 6.2 m

Operating Speed

14 Mph | 22,5 km/h

Minimum Power Required

30 HP | 22,4 Kw

Weight

3015 Lbs | 1370 Kg

Transport Width

8'3" | 2,5 m

TIre Size

205-65/15 *Monthly payment stated above assumes a secured commercial use loan transaction available for highly qualified commercial loan applicants. Actual loan payment amount and terms may vary. Consumer financing not available for consumers residing in Nevada. Additional state restrictions may apply. Equal opportunity lender. Click here for more state licenses and disclosures. NMLS ID: 1857954. VERMONT RESIDENTS: THIS IS A LOAN SOLICITATION ONLY. CurrencyFinance IS NOT THE LENDER. INFORMATION RECEIVED WILL BE SHARED WITH ONE OR MORE THIRD PARTIES IN CONNECTION WITH YOUR LOAN INQUIRY. THE LENDER MAY NOT BE SUBJECT TO ALL VERMONT LENDING LAWS. THE LENDER MAY BE SUBJECT TO FEDERAL LENDING LAWS. CALIFORNIA RESIDENTS: Financing provided or arranged by Express Tech-Financing, LLC dba Currency pursuant to California Finance Lender License #60DBO54873 Chat Now
