2026 SITREX CH350

General

Year

2026

Manufacturer

SITREX

Model

CH350

Category

Other Hay and Forage Equipment

Price

Call for price

SPECIFICATIONS

Total length

4130 mm

Width outside wheels

2075 mm

Total height with unloader completely lowered

2600 mm

Mixing tank volume

3,5 m³

Mixing tank internal length

2000 mm

Mixing tank internal width

1400 mm

Mixing tank internal height

1200 mm

Door length

1750 mm

Empty weight

2200 kg

Net capacity

1.300 kg

Minimum Powerd Required

48 Kw - 66 Hp

Min. oil flow and max. pressure

min. 30 L - max 150 bar

Controls

Electric with joystick

Attachments to the tractor

2 - quick coupling

Max. load round bales

2 - diam. 1800 mm

Max. load square bales

N°1 1300X900X2700

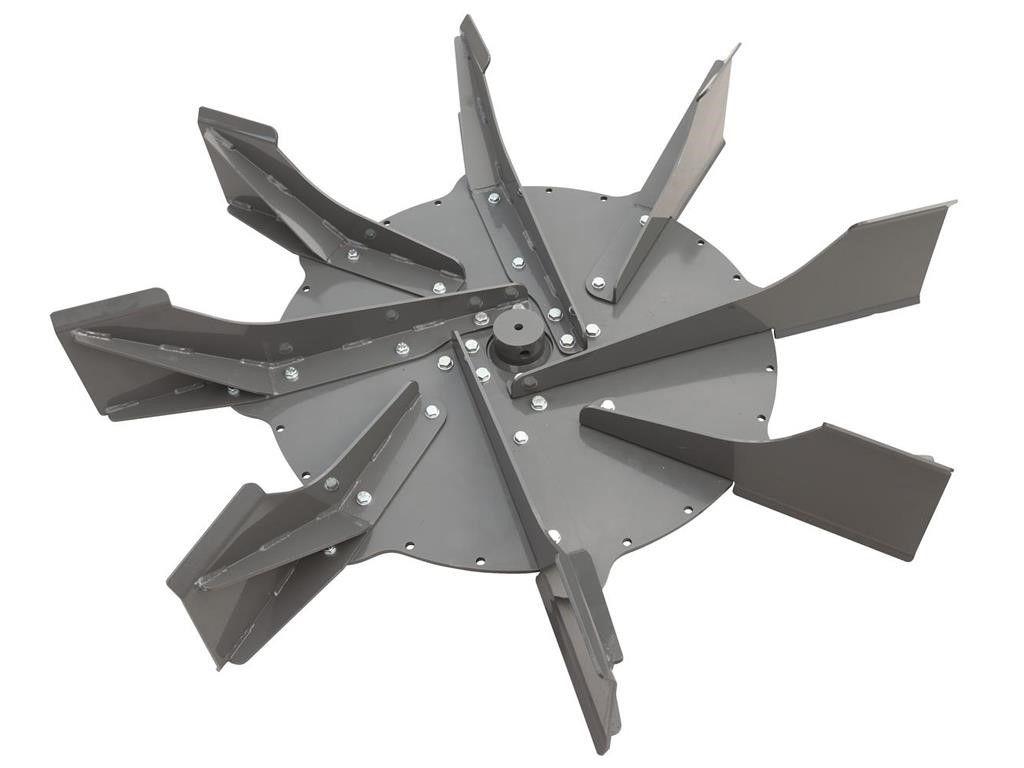

Turbine diam.

Ø 1500 mm

Number of throwing blades

8

Max. throw distance to RH

20 mt

Turbine two-speed gearbox

min. 280 max 540

Cutting rotor

1 L=1400 diam. 530 mm

Number of knives

72

Rotor rpm

450

Number of counter-knives

13

Rotor drive

4-groove belt, with spring

Single Wheels

10.0/75 R15.3

Axle

Sect.60 L=1800 6 stud bolts

Description
