| Model | Three-Point Model | Semi Mount Model | Trailing Model |
|---|---|---|---|
| Overall Width | 126.5 in (3213.1 mm) | 126.5 in (3213.1 mm) | 126.5 in (3213.1 mm) |
| Overall Length | 110.75 in (2813 mm) | 114.95 in (2920 mm) | 152.8 in (3881 mm) |
| Transport Deck Height | 10 in (254 mm) | 18 in (457 mm) | 10 in (254 mm) |
| Cutting Height | 2 - 12 in (50.8 mm - 304.8 mm) | 2 - 12 in (50.8 mm - 304.8 mm) | 2 - 12 in (50.8 mm - 304.8 mm) |
| Weight | 2,150 lbs (975 kg) | 2,200lbs (998 kg) | 2,225 lbs (1009 kg) |
| Trailing Hitch Weight | - | - | 1,000 lbs. (454 kg) |
| Tractor HP Requirement (Min) | 50 hp | 50 hp | 50 hp |
| Blade Tip Speed | 16,390 ft/min | 16,390 ft/min | 16,390 ft/min |
| Blade Overlap | 4 in (177 mm) | 4 in. | 4 in. |
| Blade | 0.5 x 4 Uplift | 0.5 x 4 Uplift | 0.5 x 4 Uplift |
| Stump Jumper | Symmetric die pressed (7 Ga.) | Symmetric die pressed (7 Ga.) | Symmetric die pressed (7 Ga.) |
| Side Skid | Replaceable | Replaceable | Replaceable |
| Hitch | Cat II / III 3-Point | Cat II / III 3-Point | Swivel Clevis |
| Tires | 15 in. Solid Rubber Caster Wheels | 15 in Solid Rubber Caster Wheels | 24 x 7.7 x 10 Aircraft Tires (Air Filled) | 21 in. (53 cm) Laminated Wheels (Solid Rubber) |

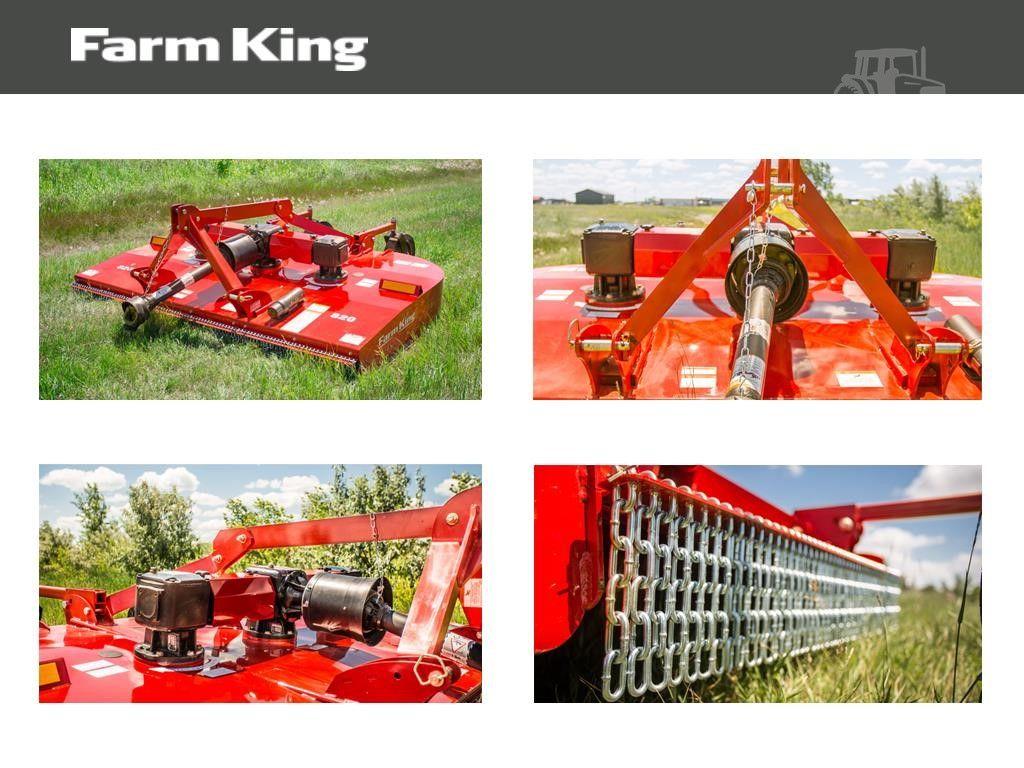

FARM KING — 1020 — TWIN SPINDLE ROTARY CUTTER MODERN TECHNOLOGY BUILT OLD FASHIONED TOUGH. THE NEW TWIN SPINDLE ROTARY CUTTERS ARE SIMPLE ROBUST MACHINES THAT ARE DESIGNED FOR A MINIMUM 40 HP TRACTOR TO HANDLE ALL YOUR ROUGH CUT NEEDS. This is a clean at top design that boasts a strong 120 and 90 HP gearbox with a 5 year warranty. With standard safety chains, standard stump jumper and replaceable skid shoes these machines are ready to work. Extremely high blade speeds and a 2" cutting capacity make these very effective machines that can take the abuse it needs to take and keep on working hard for you. FEATURES SLIP CLUTCH The slip clutch mechanism allows the cutter to get past obstacle and continue cutting when an obstacle is hit. This feature also prevents damage to the gears inside the gearbox and other internal parts. Other rotary cutters use a sheer pin which simply sheers and stops the machine where it is without damaging the gears or drive line. However, a new sheer pin has to then be put in to continue operation. A slip clutch allows for field mistakes without damaging the machine and without having to stop and replace parts. GEARBOX The very robust 120 and 90 HP gearbox for this cutter will hold up to extreme use. In addition, the cutter has a 5 year (limited) warranty giving reassurance that this machine will be working hard for years. FLAT TOP DECK On top of it looking a lot better aesthetically - having a smooth deck means that water or material can easily blow off of the machine. Bracing on top of competitor machines means that there is a catch-all for materials and when left over time will contribute to the rusting of the deck itself. STANDARD ITEMS Replaceable skid shoes, chain guards, stump jumper come standard. The Twin Spindle Rotary Cutter has easily replaceable skids making this unit much more easily maintained compared to traditional welded on skids. This unit also has full chain guards which are superior in strength and safety compared to the standard rubber banding that many competitors use. The stump jumper around the blade area comes as standard and helps prevent the blades getting damaged when hitting obstacles giving the unit a longer life span.
